ABUS 40 Ton Overhead Gantry Cranes


  • Manufacturer: ABUS Germany
  • Model: ZLK GM 6000.40000 L-202.82.10000.3.Z 280.20 (40 Ton)
  • Condition: Good
  • Year of Make: 2020
  • Capacity: 40 Ton
  • Available for Export

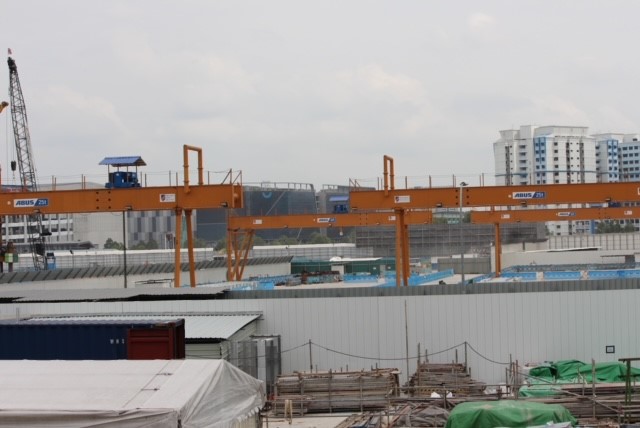

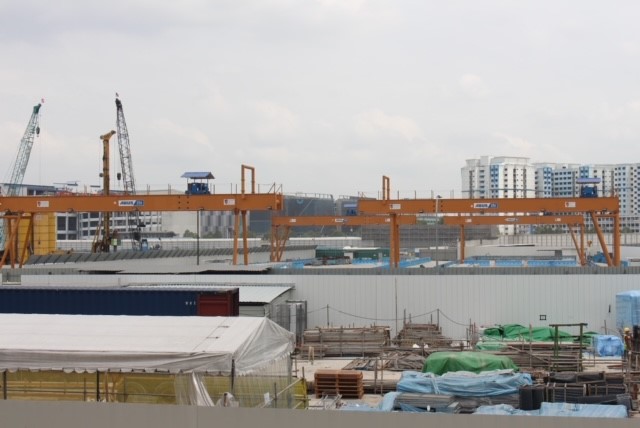

40 Ton x 23 meters Span Double Girder Gantry Cranes (2 Nos.)
Cantilever: 3.5 meters
Lifting height: 9 meters (max. 10 meters)
FEM / ISO Group: 2m / M5 (40 Ton)
Power Supply: 415V 3Ph 50Hz
Control Voltage: 48V 1Ph 50Hz

Hoisting Speed: 0.8/5.0 m/min 5.8/37.6 kW 40% ED (40 Ton)
Cross Travel Speed: 5.0/20.0 m/min 2 x 0.18/0.80 kW 50% ED (40 Ton)
Long Travel Speed: 7.5/30.0 m/min 4 x 0.37/1.50 kW 50% ED (40 Ton)

Designed, calculated with endorsement report by M.O.M. approved Q.P.

Equipped with:
1) Both wireless and wired control
2) Flood lights for night operation
3) Load display
4) Maintenance platform and cat ladder

ABUS 40 Ton Overhead Gantry Cranes
