Description [A]

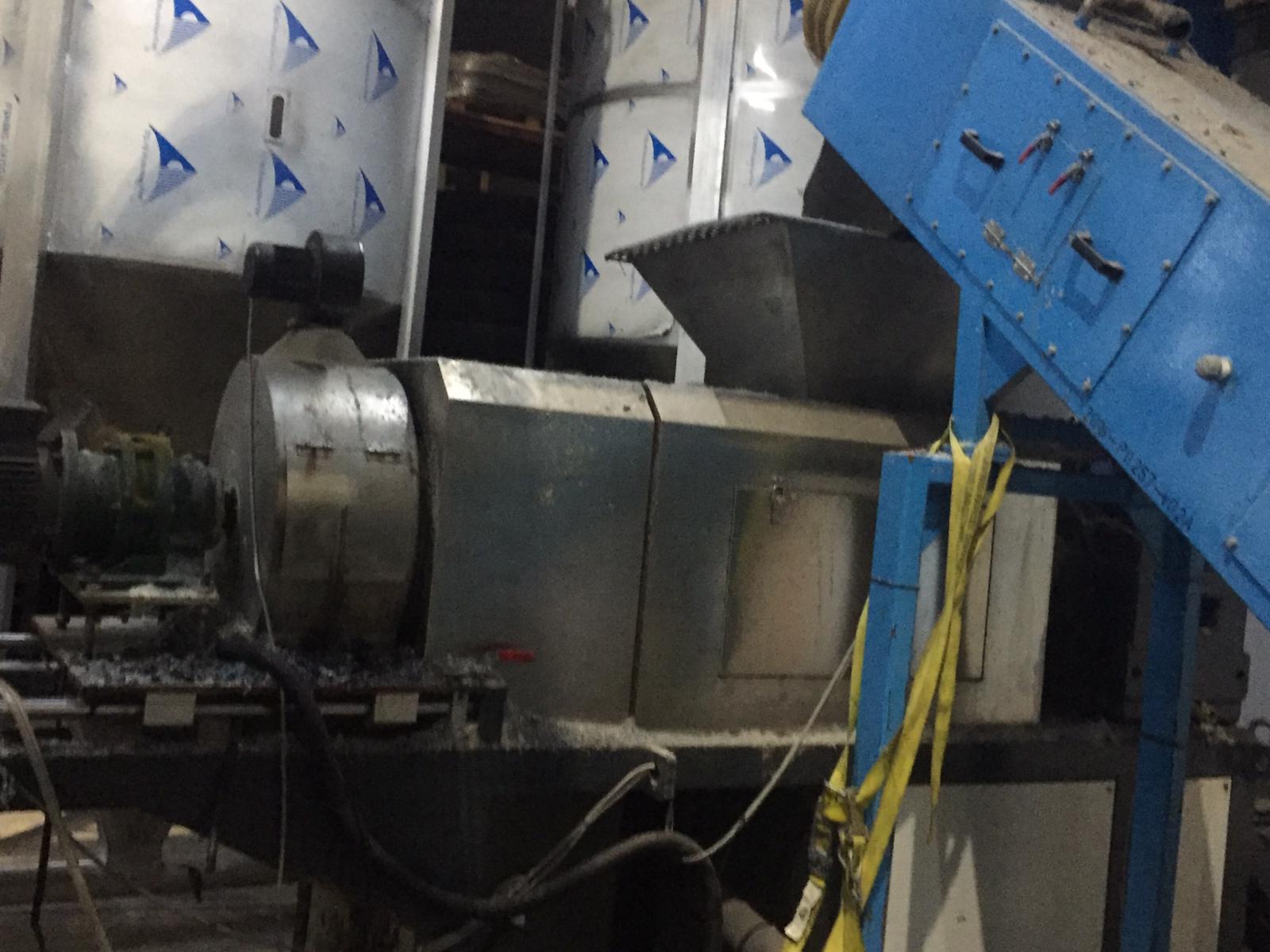

1. Friction Washing Loader Machine
Bearing: SKF high speed bearing
Motor Power: 15KW
Rotor Diameter: 550mm
Screen Diameter: 3mm
Rotor Length: 3500mm
Rotor Speed: 600rpm

2. Floating Washing Tank
Size: H2000mm x W2000mm x L6100mm
Washing Roller: 5pcs (2.2kw) à Specially made can have more washing for lakes but less water take out
SS304 stainless steel bottom with dirty drain screw
SS304 stainless steel side screw loader for dirty X1pc (0.75kw)
Installed on the side of the floating washing tank to loading out the bottom dirty so no need to change water often
Motor: ABB
Chain & bearing: SKF bearing & SKF chain

3. Production Platform
Steel structural operator working platform
size: L12000mm x W6000mm x H4000m (Platform SWL: 350kg/sqm)
Structural Material: I-Beam 350mm x 175mm x 12mm thick, 6mm Chequered Plate
c/w safety handrail H1000mm, staircase and PE certificate for platform
Finishing: 1st primer coat, and finishing by epoxy paint

4a. Heavy Duty custom make of buffering silo (big) c/w bottom screw conveyor (0.75kw)
Size: Dia2000mm x H3000mm
Conveyor motor: ABB 0.75kw
Bearing: SKF Bearing

4b. Heavy Duty custom make of buffering silo (small) c/w bottom screw coveyor (0.75kw)
Size: Dia2000mm x H3000mm
Conveyor motor: ABB 0.75kw
Bearing: SKF Bearing

Description [B]

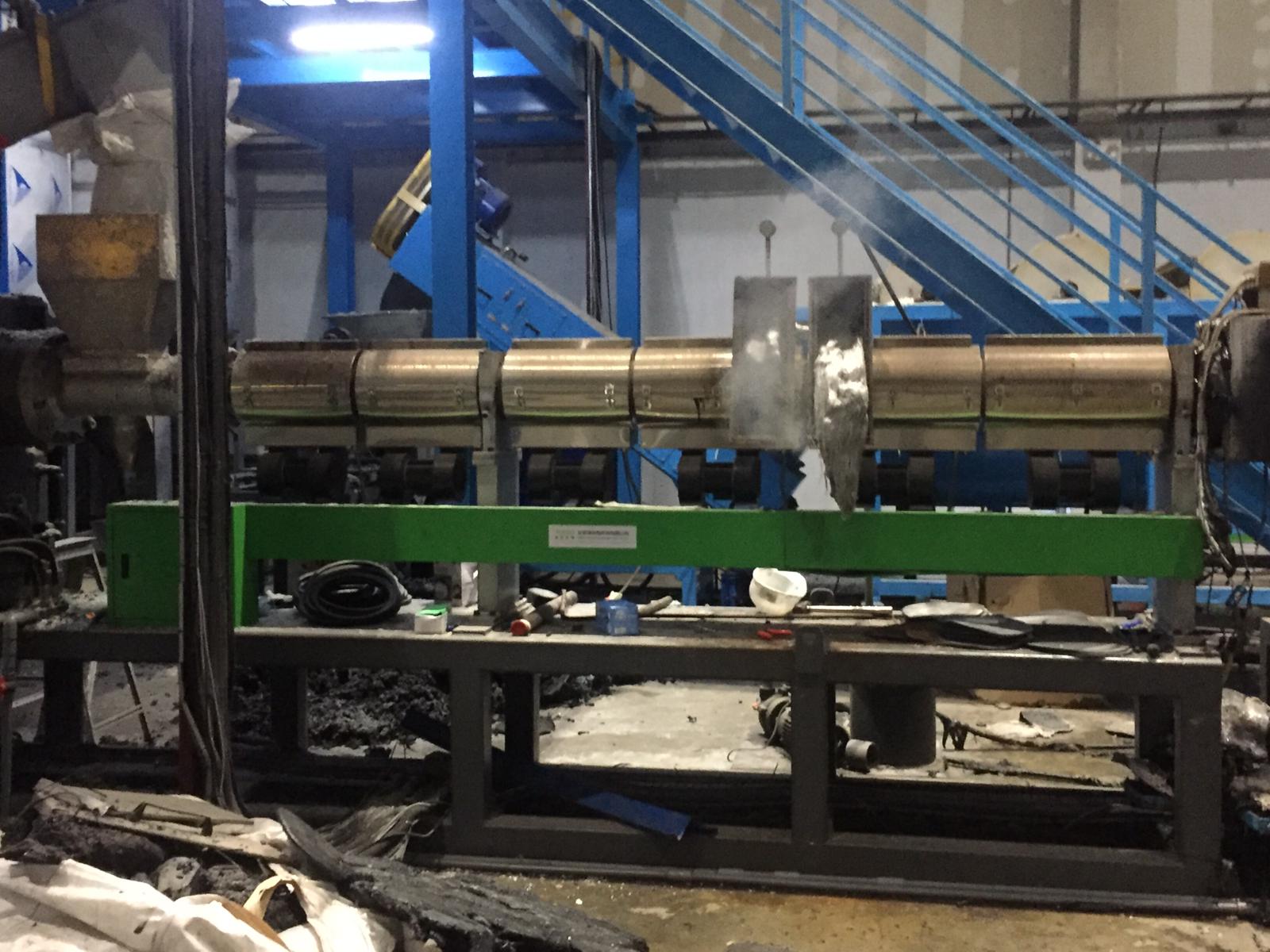

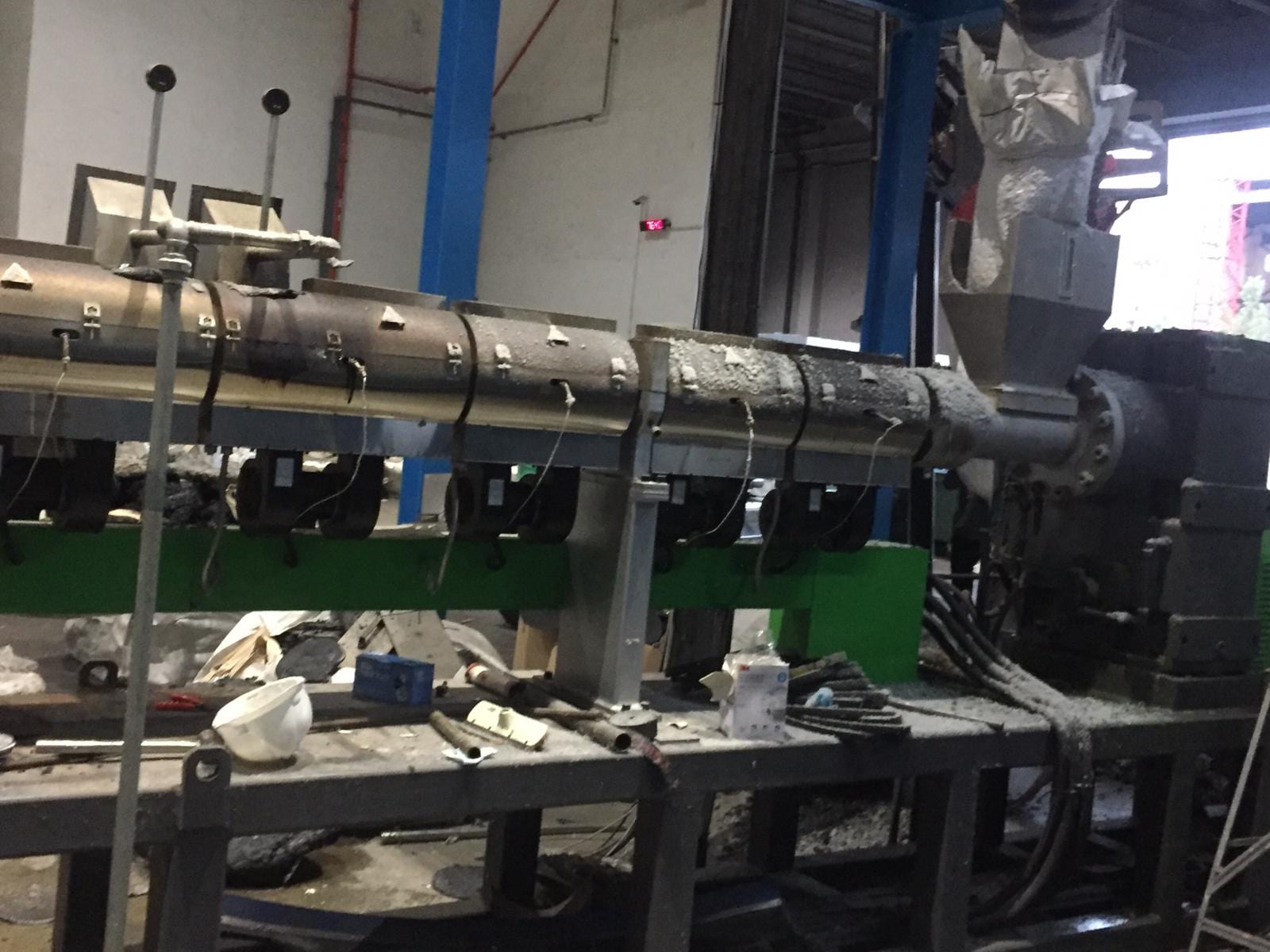

Part I: YSS-SJ150 PE Film pelletizing machine (Double stage)
Capacity: 400~500kg/hr
Raw material: PE Film Flakes
Final Products: Granules: ~=3mm
Running power: Installed power: 288kw
Power consumption: 144~172kw/hr
Power supply: 3*415v 50Hz+N+PE or customised
Volatage tolerance: 60Hz+/-5%
Frequency: +/-2%
Control voltage: 24VDC+220VAC
Water system: Water supplying:
If without water circulation system will consumption 12.5m3/hr;
If with water circulation system only consumption 0.2m3/h
Water temperature <15 celcius degress
Environment required: Indoor with Altitude <1000m
Temperature: -15-55 celcius degree
Relative humidity <90%
Brand use: Temperature meter: "OMRON" Japan Brand
oil seal use "TTO" Taiwan brand;
Brand used in the line: "Schneider" Contactor,
"DELTA" inverter/Taiwan Branded
Motor Brand: "Siemens" Brand
Bearing Brand: "SKF" Brand

Description [C]
Powtrans 160kw variable frequency drive
Voltage: 380-420 3 phase
Ampere: 275A

Powtrans 5.5kw variable frequency drive
Voltage: 380-420 3 phase
Ampere: 10A

Description [E]
Sensorika 35020 Low Porfile floor Platform Scale
Model: 35020-SR-3
Powder coated mild steel construction
Capacity: 3000kg
Readability: 0.5kg
Weighing platform size: 1.2m x 1.2m
With weighing indicator Sensorika 47516
ABS enclosure
Bright red LED display
Weighing units: kg
Power: 230 VAC

Weighing Indicator's stand
