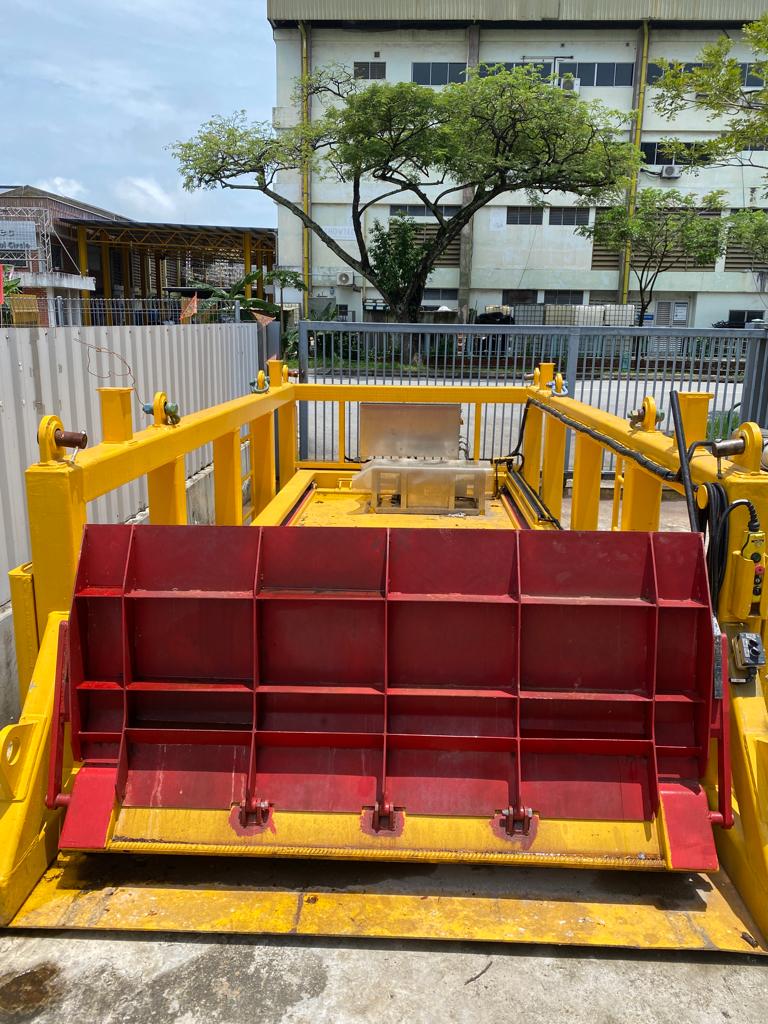

Crane Attachment for Heavy Machinery Insertion in High Rise Buildings

Available For: Sale|
Listed on: 04-Oct-2024
| Functions: Access System, Aerial Platform, Construction, Lifting Equipment
| Types: Aerial Lift, Lifting
| Price Upon Enquiry

Specification
Description

Manufacturer: Ram Spreaders Lifting Technologies
Model: Launcher
Condition: Very Good
Year of Make: 2021
Capacity: Payload: 8,000 kg

Drive power: 415v
Drive motor: 1.5kw (3 phase)
Platform extend speed: 120 mm per second
Control: Handheld pendant
Design Specifications: BS EN13155:2020, SS343-1:2004 Part 1, SS617:2016
Test & certification: Authorized Professional Engineer, Ministry of Manpower Singapore

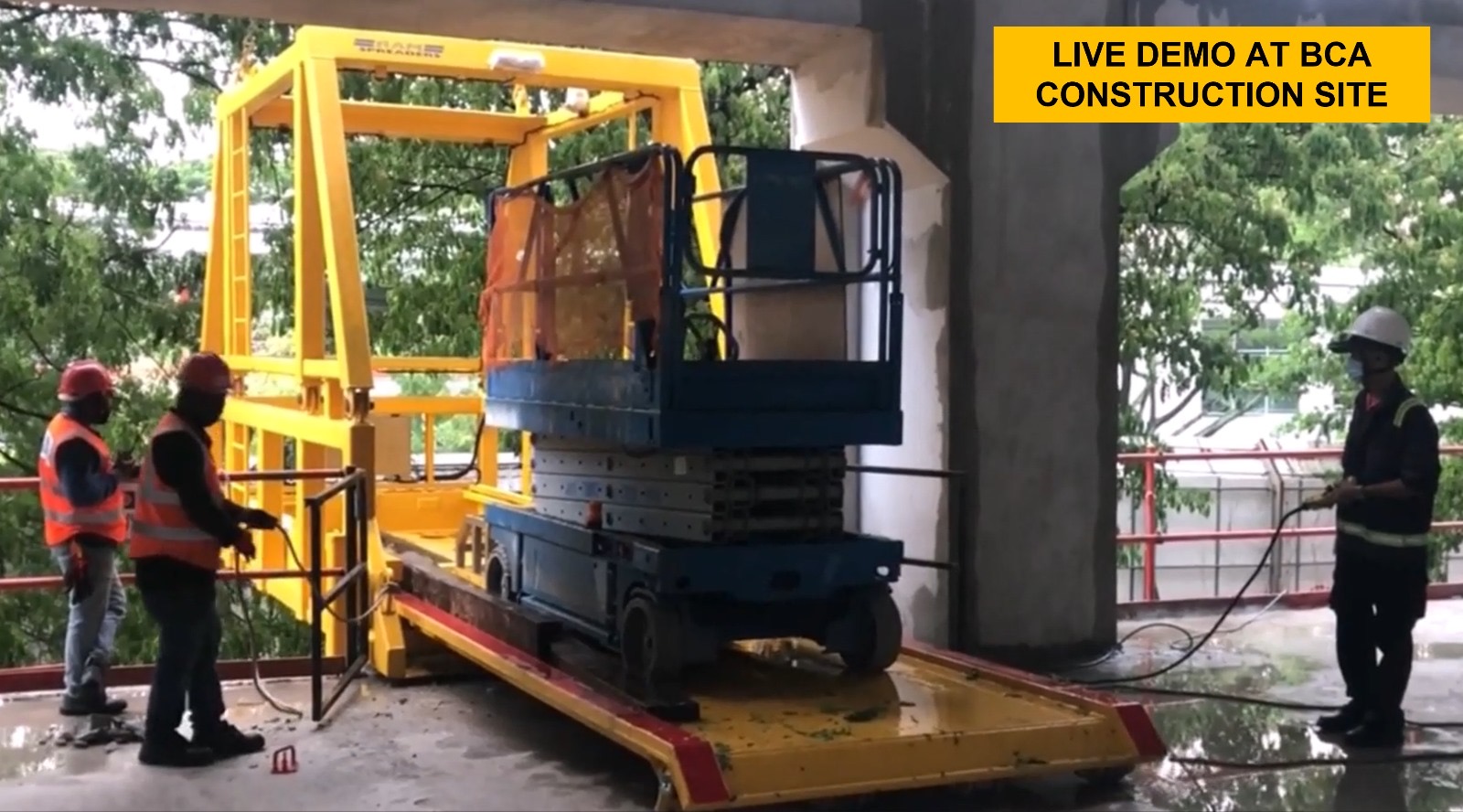

See this equipment in action at: https://drive.google.com/file/d/1lOUVeHyixJio2lbe3BV2NHE6U8IQaPAs/view?usp=sharing

DIMENSIONS
Equipment length: 5,770 mm
Equipment width: 2,440 mm
Equipment height: 1,370 mm
Platform width: 2,080 mm
Ramp / barrier length: 900 mm
Extend / retract: 3,800 mm

WEIGHT
Test load: 16,000 kg
Tare weight: 5,400 kg
Laden weight: 13,400 kg

See this equipment in action at: https://drive.google.com/file/d/1lOUVeHyixJio2lbe3BV2NHE6U8IQaPAs/view?usp=sharing
