• Model: W100B
• Condition: Good working condition

Laser Type: YAG
Laser Wavelength: 1064nm
Max Output Power: 100w
Max Laser Pulse Energy: 50J/ 10ms
Min Beam Diameter: 0.15mm
Pulse Width: 0.1ms - 50ms
Pulse Frequency: 1 - 20Hz
Worktable Repeated Positioning Accuracy: 0.02mm
Planar Worktable Effective Stroke: 100mm x 100mm (Electric)
Lifting Effective Stroke for Z axis: 500mm (Electric)
Worktable Load Bearing: 120kg

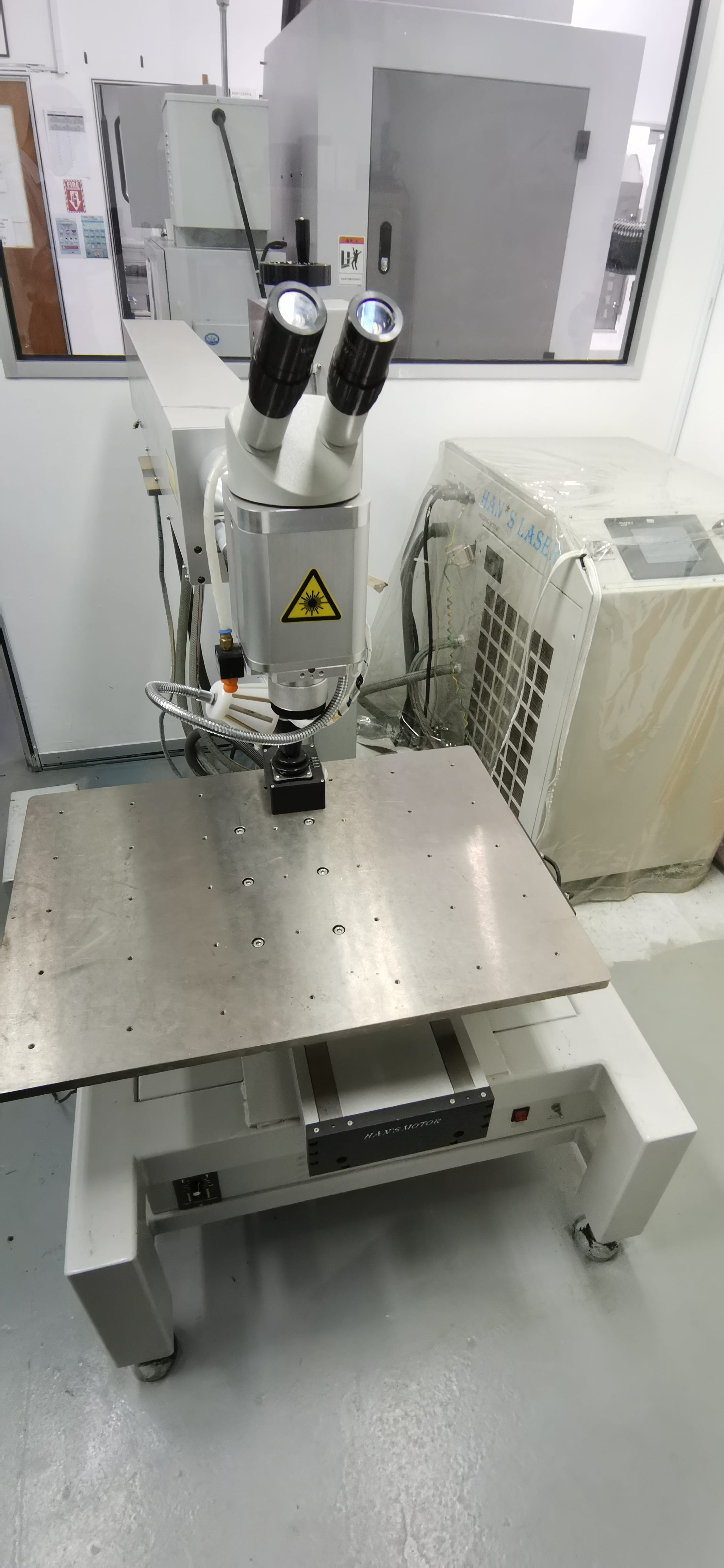

Viewing System: Microscope
Operating Device: Rocker used for Industrial Control
Cooling Method: Forced Air Cooling
Power Consumption: 4KW
Power Supply: 220V+-110%/50Hz
Dimension: Control System 800mm x 600mm x 910mm

Stainless: √ (up to 1mm)
Coated metals: √
Aluminum: √ (up to 1mm)
Copper: √ (up to 0.5mm)
Titanium: √ (up to 1mm)
Bare Metals: √ (up to 1mm)
