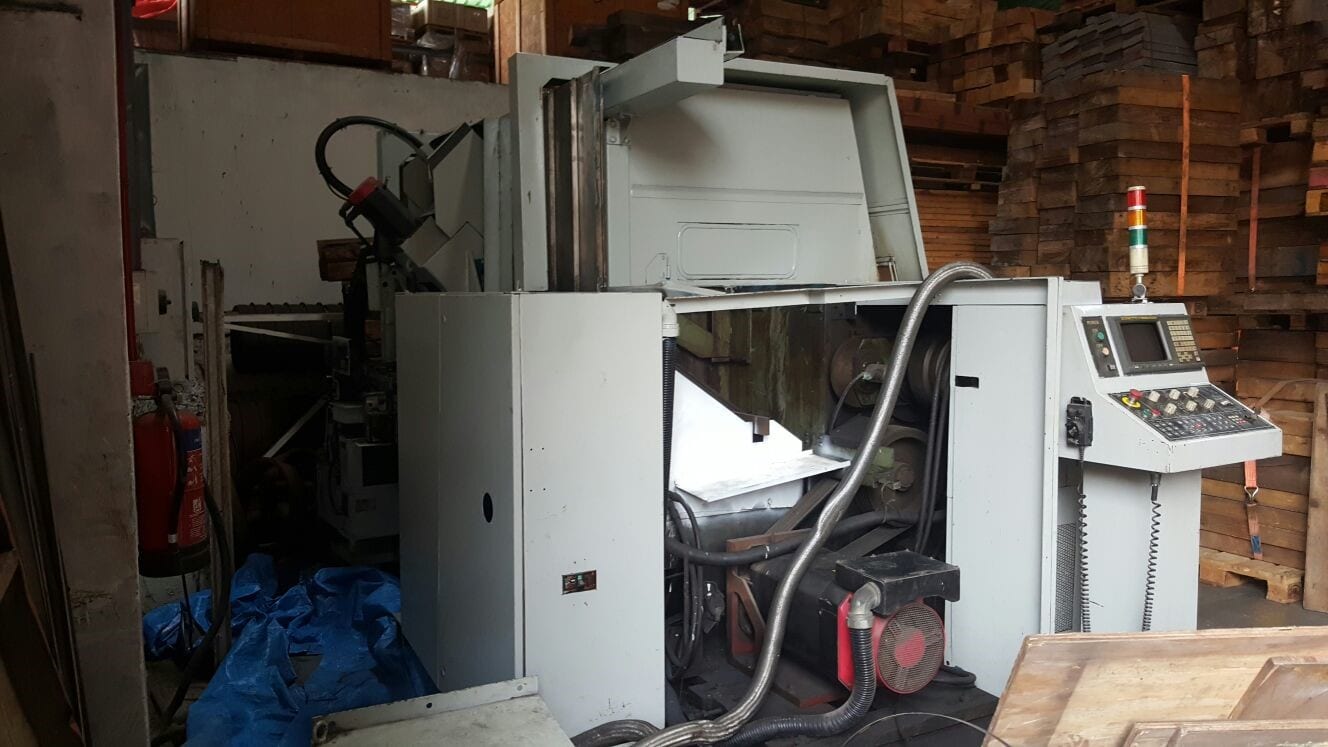

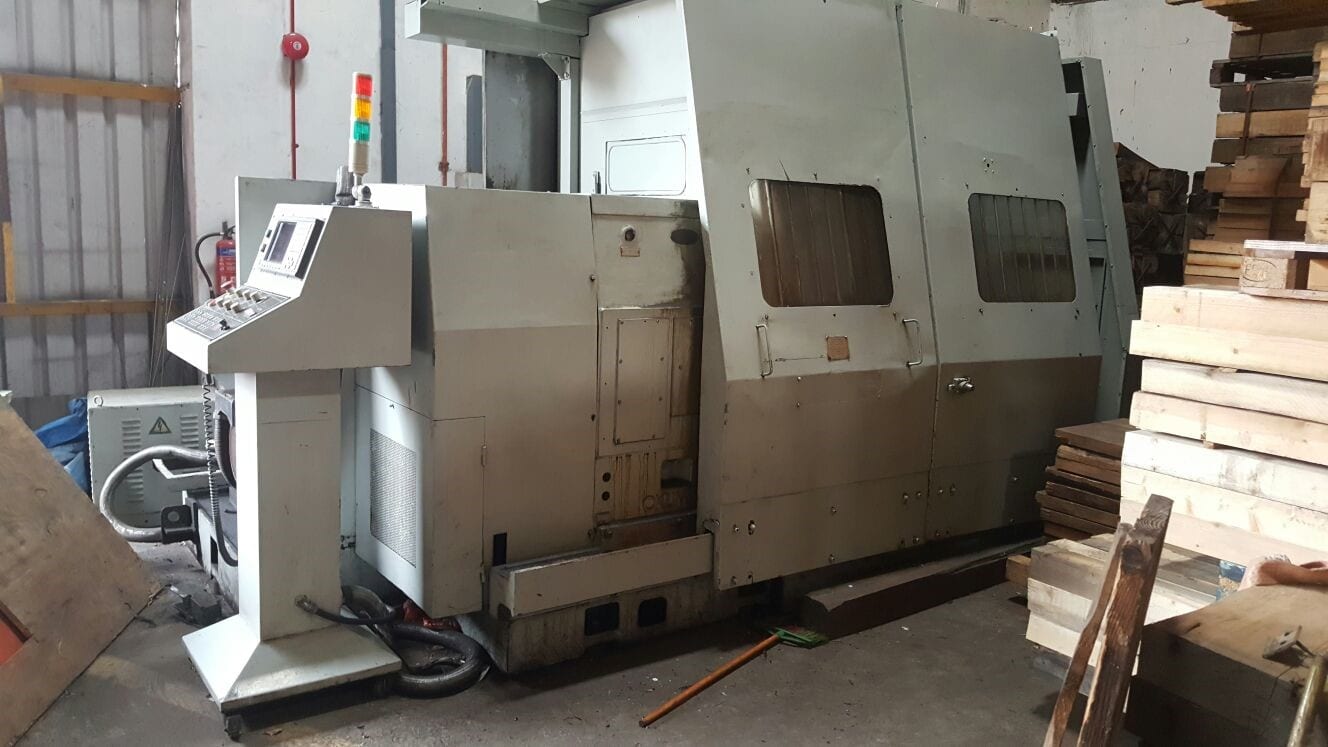

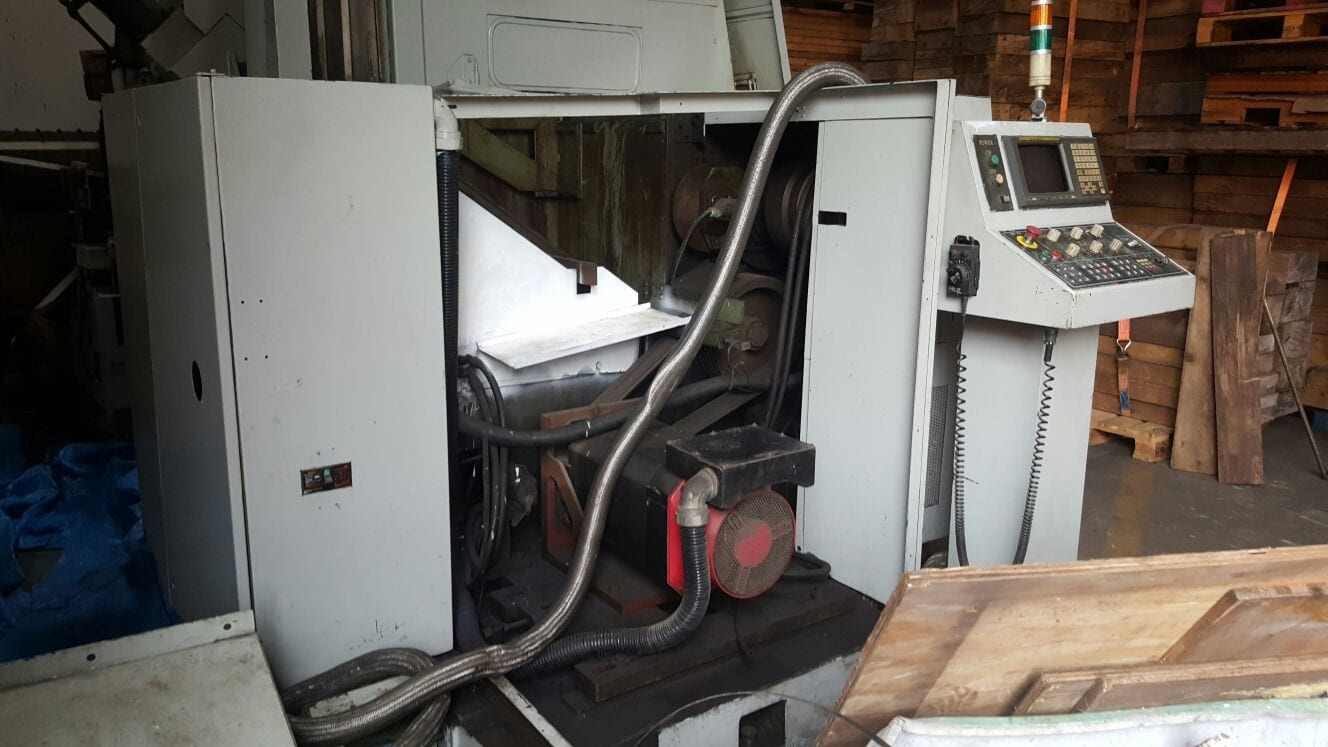

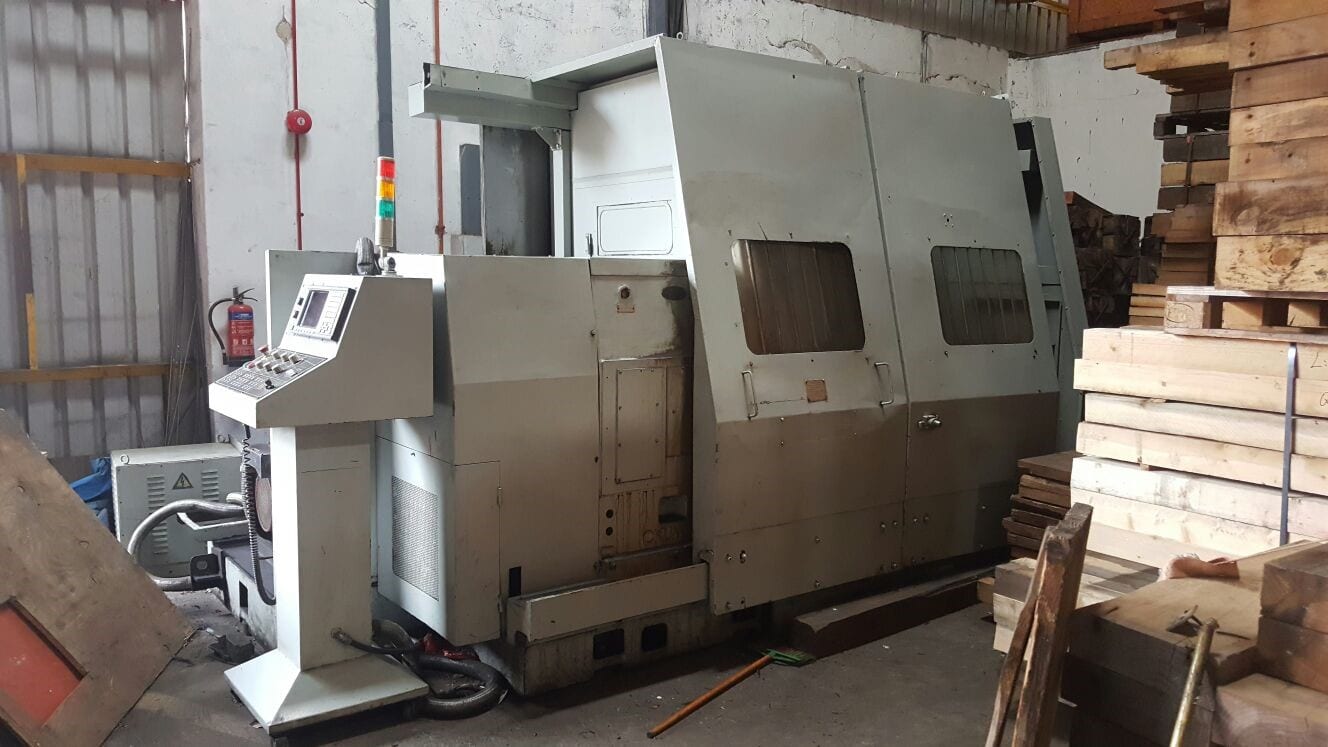

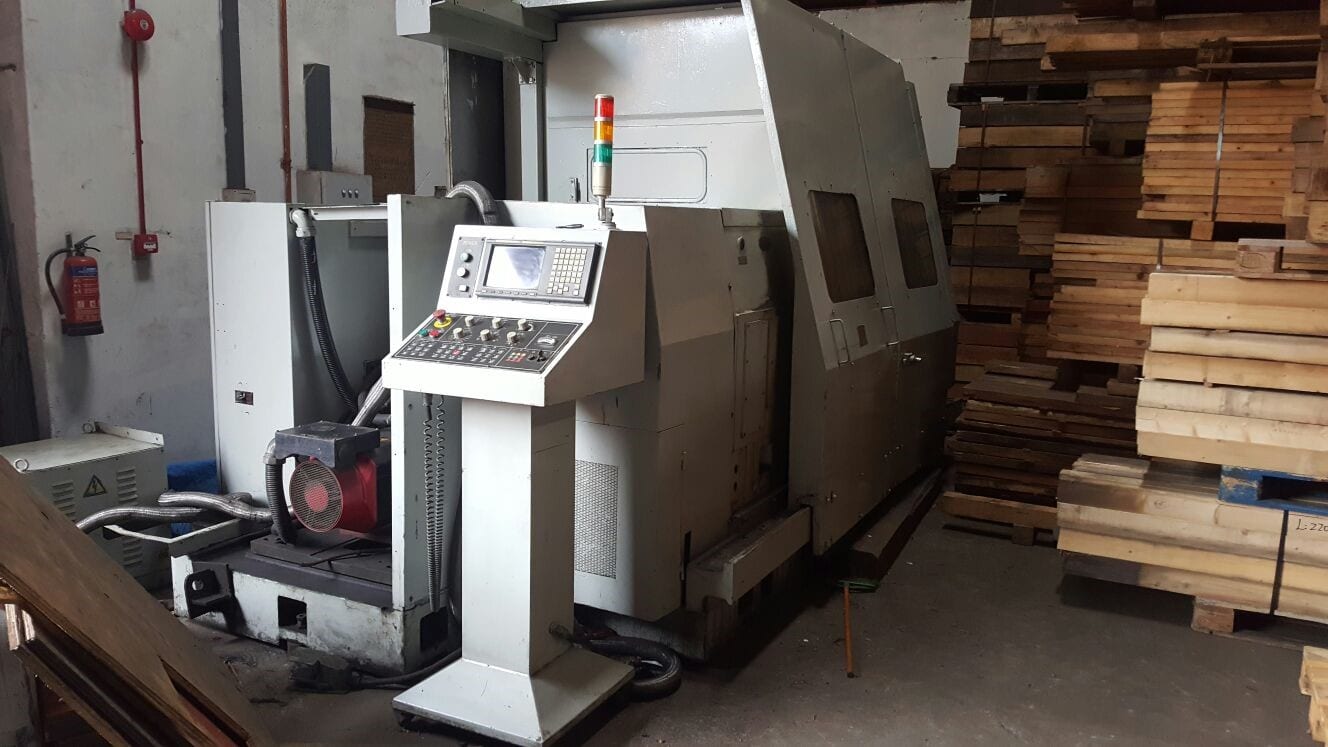

Okuma CNC Turning Master Machine

Available For: Sale|
Listed on: 27-May-2019
| Function: Material Fabrication
| Type: Machinery
| Price: S$ 25,000

Specification
Description

Manufacturer: CNC
Condition: Very Good

Specifications: 32” Okuma lathe, 9.5” spindle bore, Type LC50
Serial number: 59090060*

Chuck Size - 23" Hydraulic Chk
Swing Over Bed - 31.49"
Maximum Turning Diameter - 25.59"
Bed Length - 86"
Spindle Nose/ Spindle Bore - A2-15"/ 6.87"
Spindle Speed 5 - 1,000 RPM
Spindle Motor 30 Min./ Cont. - 74 HP/ 60 HP
Number of Gear Ranges 4 Speeds
Number of Turrets - 2 Turrets
Number of Turret Positions (Upper/ Lower) - 12 pos./ 8 pos.
Rapid Traverse Rates - 400 IPM
Machine Dimensions - 259"x119"x112"
Machine Weight - 29,500 lbs.

Equipped with:

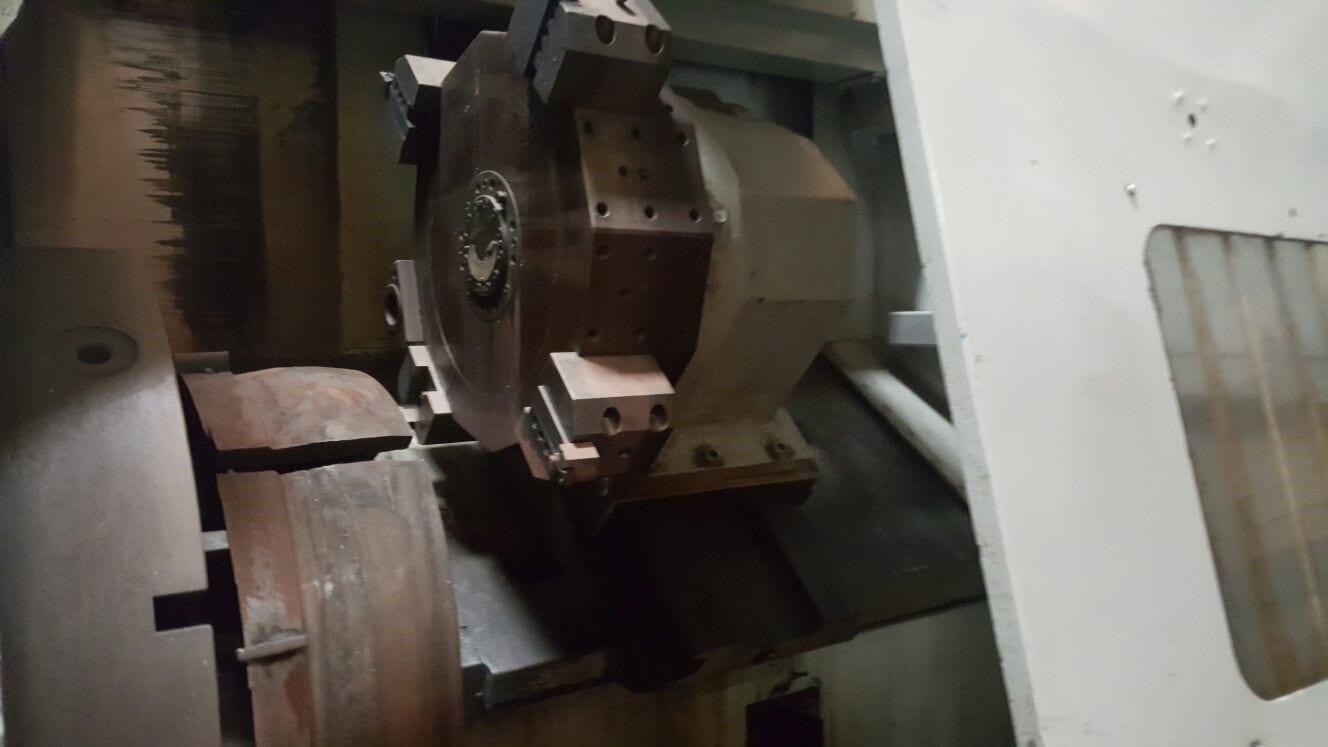

23" 3 Jaw Hydraulic Chuck, Chip Conveyor, Ballscrew Lead Compensation, Hertel Quick, Change Tooling, Programmable Tailstock, Automatic In-Process Gaging System, Tool Probe, Spindle Orientation, Absolute Position Feedback, All Available Manuals, All Available Tooling

CNC turning machine from Aerospace Plant which was installed New in 1989
No Tailstock

Send an Enquiry

Seller Info

New Funnels (S) Pte Ltd

176, Gul Circle, Singapore 629627
+65 6862 9921
johannes@newfunnels.com.sg
