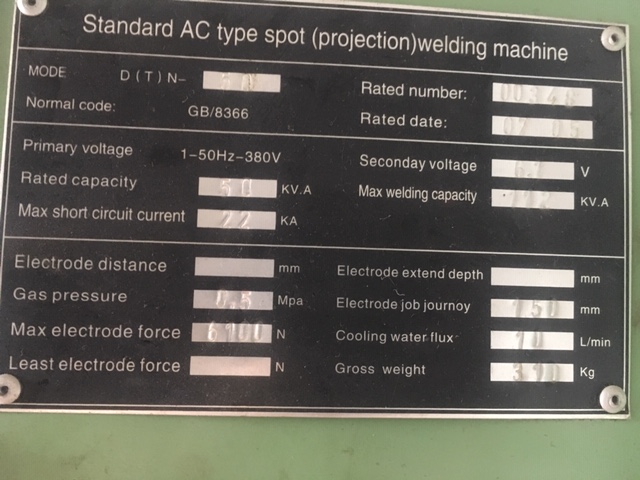

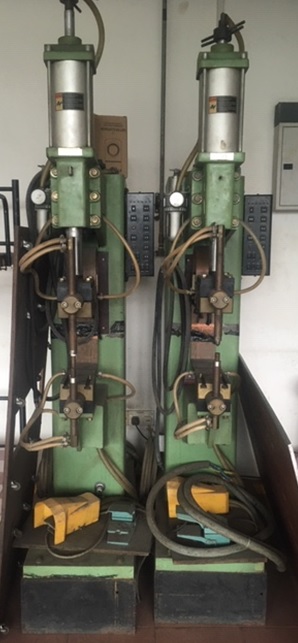

Standard AC Type Spot (Projection) Welding Machine


  • Manufacturer: Hanwin
  • Model: D (T) N-50
  • Condition: Good

Rate input voltage (V) : 380
Power frequency (Hz) : 50
Rated primary current (A) : 131
Max short current (KA) : 22
Rated output power (KVA) : 50
Max output power (KVA) : 96
No. load secondary voltage (V) : 6.1
Dimensions (mm) : L850 x W600 x H1700
Weight (kg) : 310

Resistance spot welding is widely apply to the making electronic meter and home electrical appliance, synchronously, it is also largely apply to the architecture project, the welding of pressing part and metal component in the making means of transit and aerial aerocraft.
It consists of the advanced logistic digital control mode, can well and truly control the welding current and time.
It will be suitable to apply to weld soft steel, alloy structure steel, stainless steel, heat-resistance alloy, aluminum alloy, titanium alloy etc

Standard AC Type Spot (Projection) Welding Machine
