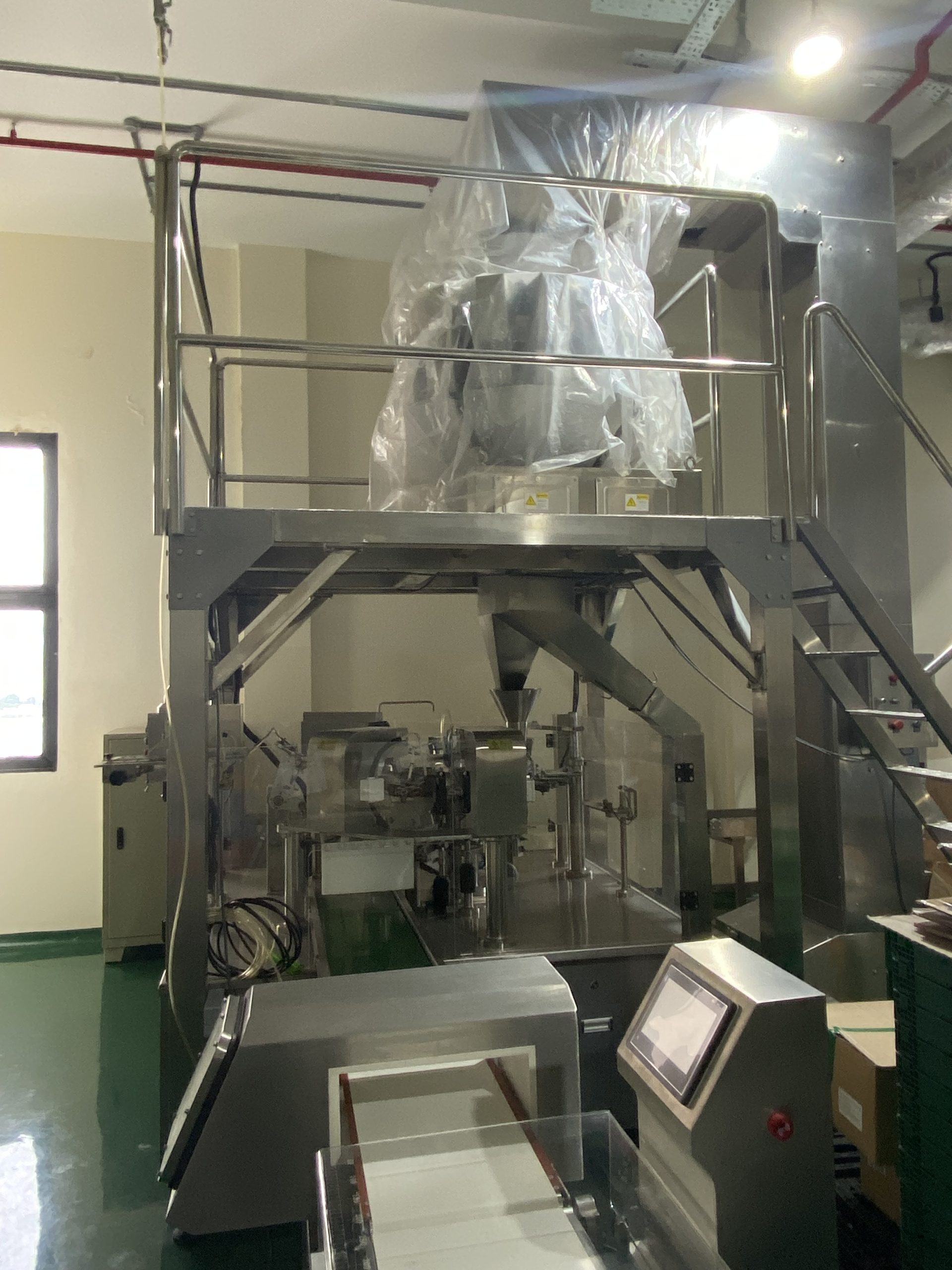

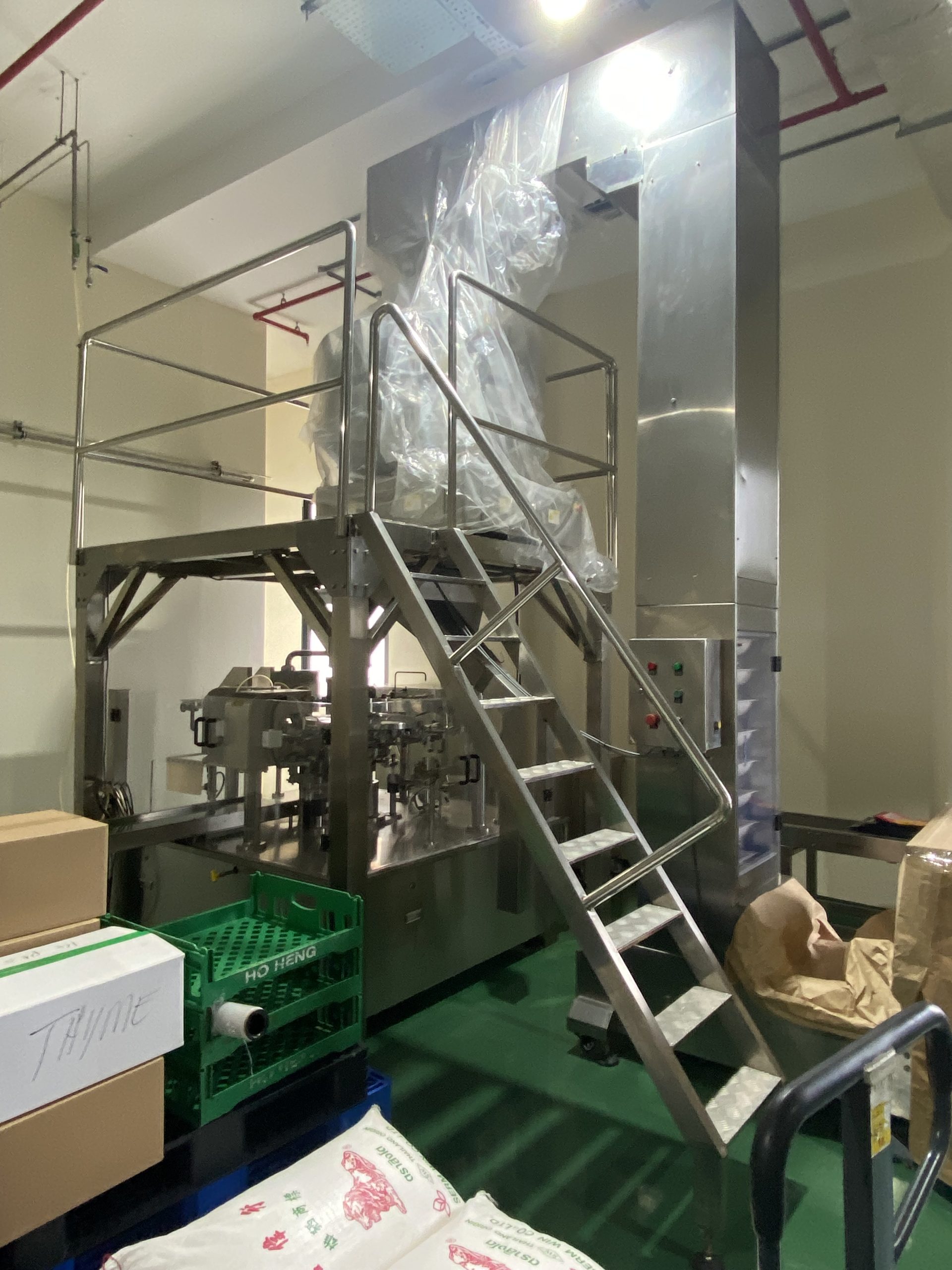

SUREPACK KLB Linear Scale with Platform & Bucket Elevator

Available For: Sale|
Listed on: 18-Apr-2023
| Functions: Manufacturing, Processing
| Type: Machinery
| Price Upon Enquiry

Specification
Description

Manufacturer: Surepack
Model: Surepack
Condition: Good working condition

Specifications for Surepack KLB Linear Scale:

Max Weighing Range : 10-5000grams
Accuracy : 1-5grams
Speed : Up to 25BPM
Hopper Volume : 8000ml
Power : AC220V ±10% 50Hz (60Hz);
Touch Screen : 5.7 Inches colorful panel;
PLC Control; Easy Disassemble to clean;
Frequency Invertor drives the AC Motor;
Weight : Approximately 50 kgs
Dimension : Approximately 1300mm x 330mm x 900mm
Specifications for Simple Platform for KLB Linear Scale:

304 stainless steel c/w hand railing with a extendable step for servicing & adjustment.
Weight : Approximately 100 kgs
Allowable Loading Weight : 300 kgs
Dimension : 1.5 metres x 0.8 metres x 1.6 metres

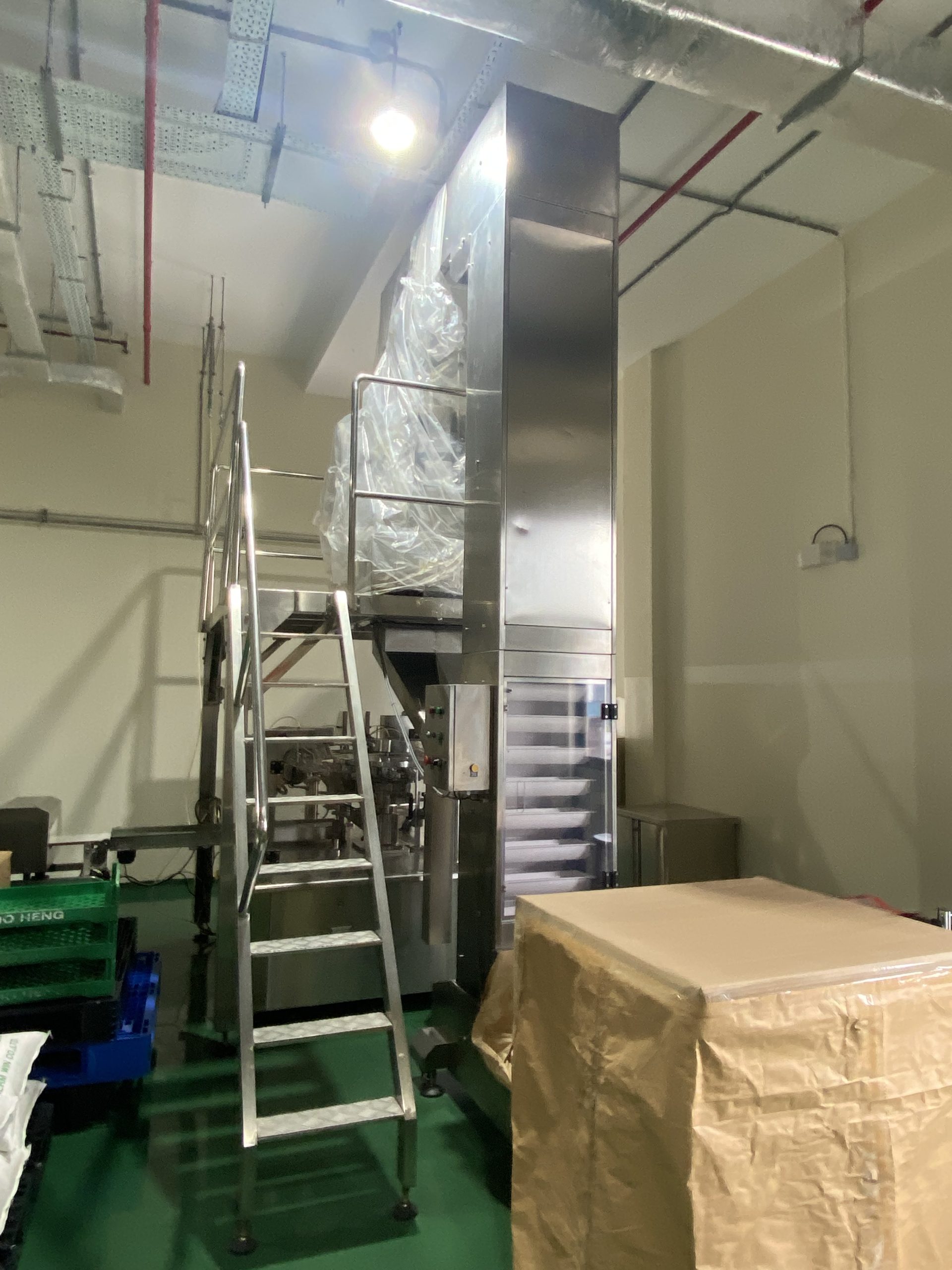

Bucket Elevator for KLB Linear Scale

For further information or enquiries please contact Simon Chan +65 9664 0100
